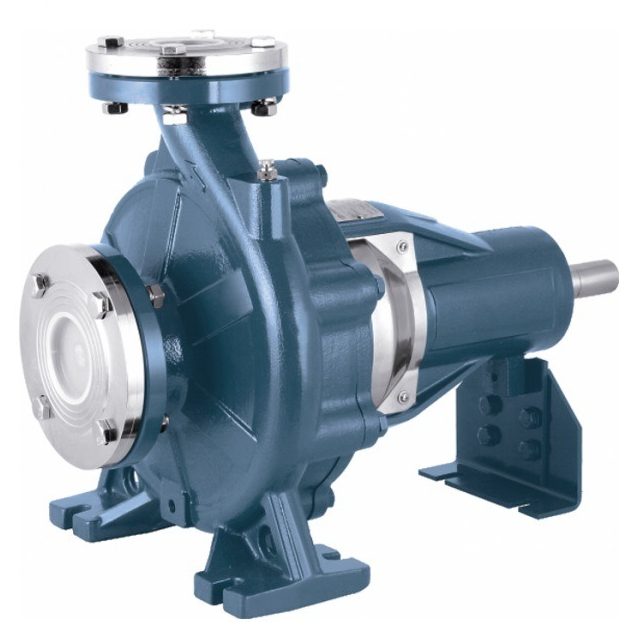

VXA SERIES - END SUCTION PUMPS
Discription
Resources
Discription
- Fully complies with both performance and dimensional requirements of DIN 24255.
- The bronze double shrouded type impeller is hydraulically balanced and positively driven by shaft key and axially locked between sleeve and impeller nut.
- The stainless steel shaft is fitted with a domed type locking nut.
Resources
Catalogue-50 Hz
Catalogue- 60Hz
Features:
- Comply with DIN24255 standard
- Back-pull-out design
- Wide hydraulic coverage
- Low NPSH requirement
- High interchangeability- Entire range uses just 4 bearing assemblies
- Now type XA has been extended to incorporate 4 new bigger sizes ie. 200/32, 200/40, 250/32 and 250/40,enlarging the performance coverage up to 1080 m3/h flow rate
- Flexible shaft seal with mechanical seal as standard and gland packing as an option
- Various materials available (cast iron, bronze and SS316 etc.)
Specifications:
| Capacities to | 1080 m3/h |
| Heads to | 150 metres |
| Liquid temperature | 15℃ up to +120℃ |
| Operating speed | 3600RPM Max |
| Pressure | PN 10, 16 45 |
Applications:
- Water supply and transfer in municipal and industrial applications
- Water treatment plants
- Air-conditioning systems
- Circulation in cooling and heating systems
- Irrigation and sprinkler pumping stations
Performance range:
